Kansas City, Kansas · 2022
University of Kansas Medical Center
A 275 kW hybrid rooftop array on an 85-foot flat deck at the University of Kansas Medical Center, engineered to meet a 3.7 psf roof loading limit with 510 modules on 599 FastRack 510-6dgs.
System size
275 kW-DC
Completed
2022
- Location
- Kansas City, Kansas
- Modules
- 510 × VSUN-144BMH-DG (540W)
- Mounting system
- FastRack 510-6dg at 10° tilt
- Mount type
- Hybrid
- Structural method
- Hybrid ballast + mechanical anchors (3.7 psf roof limit)
Why this project worked
- Engineered to a strict 3.7 psf roof loading limit
- 85-foot rooftop deck with high-wind exposure
- 599 FastRack 510-6dgs supporting 510 × 540W modules
- Compact shipping reduced on-site staging and packing waste
Overview

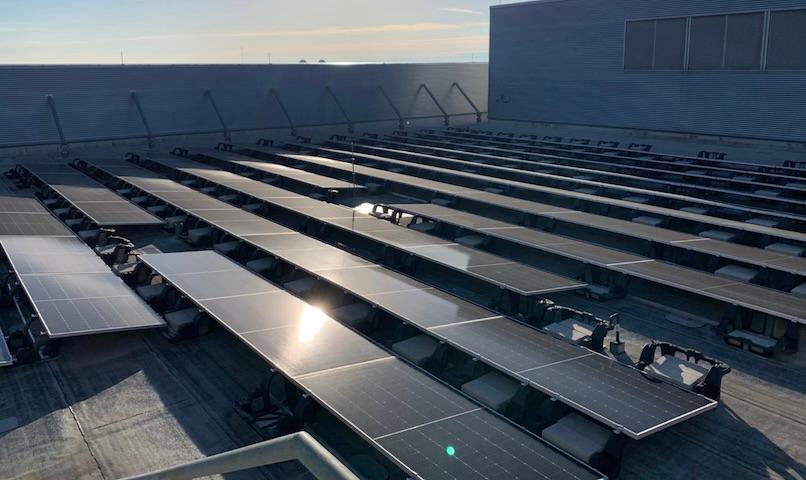

Sollega supplied the FastRack 510-6dg ballasted mounting system for the PV installation on the Kansas University Medical Hospital in Kansas City, KS. The array was installed on an 85-foot flat roof deck and engineered to withstand the high winds in the area. FastRack 510-6dg was chosen for its speed of installation and the high reliability a hospital demands. The hybrid system combines mechanical anchors and ballast block to meet a 3.7 psf roof requirement, with a 275 kW array comprising 510 × 540W modules mounted on 599 Sollega FR510-6dgs.
Sollega's engineering team designed the hybrid ballast-and-anchor layout to meet the stringent requirements of the medical facility while ensuring a safe, swift install.
